GJXH/ GJFXH FTTX Indoor Fiber Optic Cable Suspending-Type Cable
GJXH/GJFXH FTTx Drop Cable
Indoor Suspending-Type Cable
Description
Fiber Type: G.652, G.655 or G.657 single-mode fiber, A1a or A1b, OM3 or OM4 multi-mode fiber, or other types of fiber.
Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant polyolefin(LSZH), environmental halogen flame retardant polyolefin(ZRPO), or other contracted material.
Jacket Color: (Including color of fiber) meets the requirements of relevant standards, or other contracted color.
Standards
Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794, etc.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
Good mechanical and environmental characteristics.
Rame retardant characteristics meet the requirements of relevant standards. The mechanical characteristics meet the requirements of relevant standards. Soft, flexible, easy to lay and splice, and with big capacity data transmission. Meet various requirements of market and clients.
Applications
Used as access building cable.
Used in indoor cabling, especially used for FTTH.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled Launch | Effective Modal | 10Gb/s Ethernet | Min Bending |
| Bandwidth | Bandwidth | link length | Radius |
| | | |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| BI-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| BI-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |

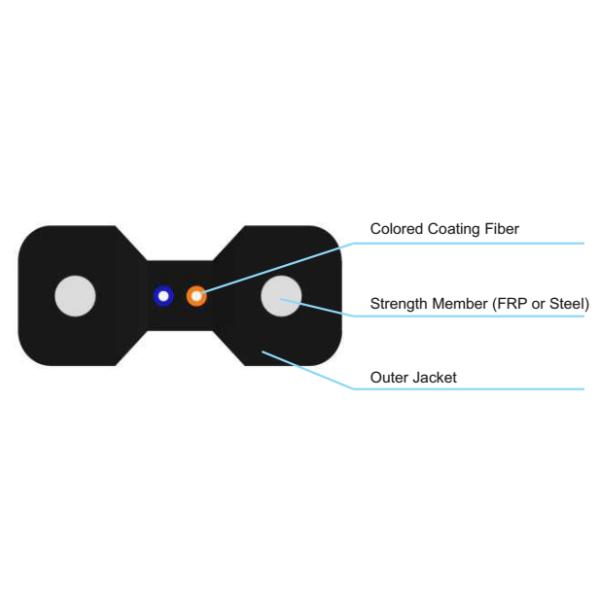

Structure and Technical Specifications
| Fiber | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance |
| (N/100mm) | (N/100mm) |
| Count | (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term |
| 1-4 | 3.0x2.0 | 9.0 | 80/200 | 40/100 | 1000/2000 | 500/1000 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
